Rof Bias Point Controller kōwae mana rītaha aunoa o lithium niobate MZ modulator

Whakaahuatanga Poto:

ROF-Ko te raupapa ABC-MZ ka whakamahia te waahanga mana whakahaere aunoa mo te mana whakahaere aunoa o te lithium niobate MZ modulator, ka taea e te modulator te mahi i te waahi iti rawa, te waahi teitei, te waahi orthogonal ranei (rohe raina). Kei te whakauru ano te kōwae ki te 1/99 coupler, ka taea te whakahaere i te whakawhiti i te waahi mahi ma te tauranga rangatū o waho, me te tautoko i te aratau whakatikatika a-ringa, e pai ana mo nga momo rereke rereke rereke me nga tono, a he tino pai mo te taiwhanga whare wananga ki te hanga i nga whakamatautau papamahi.


Taipitopito Hua

Ko Rofea Optoelectronics e tuku ana i te Optical me te photonics i nga hua whakahurihuri hiko-optic

Tohu Hua

Āhuahira

E waatea ana nga momo mahi rītaha maha (Quad+Tapawhā-, MinMōrahi)

Ko te whakawhitiwhiti korero rangatū, he mea whakarite kia pai te whakarite me te maukati i nga tohu rītaha

Ka tautokohia e nga kurupae wae o roto nga momo roangaru

mōkihi kōwae, urutau mana supply

X Whakahaere Piko AunoaX Kaiwhakahaere Piko AunoaX Kaiwhakahaere Piko AunoaX Kaiwhakahaere Piko AunoaX Kaihuri i runga i te Q PointX Bias Point ControllerX IQ Intensity ModulatorX IQ Modulator Bias ControllerX IQ-ModulatorX LN ModulatorsX MZ Intensity ModulatorX Mach Zehnder Modulator Bias ControlX Mach-Zehnder ModulatorX Pouwhakahaere Pounamu Ultra Kiato IQ Modulator Bias ControllerX Ultra Compact Modulator Bias ControllerX Ultra High Precision Bias ControllerX Ultra High Precision MZM Bias ControllerX Ultra High Precision MZM Bias Controller I runga i te NULL PointX Ultra High Precision MZM Bias Controller I runga i te Q Point

Taupānga

Whakawhitiwhiti muka whatu

Ngaruiti whakaahua

Te tono marama puhoi

Mahi

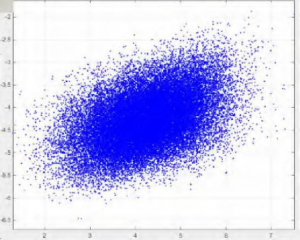

Whakaahua 1. Kahui whetu (kaore he kaiwhakahaere)


Whakaahua 2. QPSK Constellation(me te kaiwhakahaere

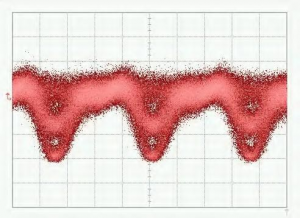

Whakaatu 3. QPSK-Tauira kanohi


Whakaahua 5. 16-QAM Constellation pattern


Whakaahua 4. QPSK Spectrum


Whakaatu 6. 16-QAM Spectrum

Whakatakotoranga

Akorero

Min

Tikanga

Max

Waeine

Tawhā whatu
Te mana whatu whakauru 1*

0

13

dBm

Te roangaru whakahaere 2*

780

1650

nm

Atanga muka whatu

FC/APC

Tawhā hiko
Ngaohiko piunga

-10

10

V

Huri ōwehenga ngaronga 3*

20

25

50

dB

Rohe kua maukati aratau

He pai, he kino ranei

Aratau maukati

Quad+ (Quad-) raneiMin(Max)

Hōhonutanga whakahuri (QUAD)

1

2

%

Hōhonutanga whakahuri (Null)

0.1

%

auau pairati (QUAD)

1K

Hz

Te auau kaiurungi (NULL)

2K

Hz

Tawhā tikanga
Ahu (roa× whanui× matotoru)

120×70×34 mm

Te pāmahana whakahaere

0 - 70

Tuhipoka:

Ko te 1* e tohu ana ki te whakaurunga awhe mana ki te kōwae i te wa e tino nui ana te putanga modulator. Mo te iti o te mana whakahaere o te modulator me te nui o te matemate, me tika te whakanui ake i te mana whakauru; Ma nga whakaritenga whakauru mana motuhake, ka taea e koe te whakatika i nga tohu taapiri a-roto me nga tohu whiwhinga, tirohia koa nga hoko ina tuku ota.

2* A, no te whakatakoto i tetahi ota, tohua koa te roangaru mahi, e tika ana kia arotauhia kia rite ki te roangaru mahi.

3* te huri ōwehenga ngaronga e whakawhirinaki ana hoki ki te taumata ōwehenga whakakorenga whakawhiti o te modulator ake.



Rahi tuhi (mm)

Te ota korero

*Mena kei a koe etahi whakaritenga motuhake, tena koa whakapiri mai ki a maatau kaimahi hoko

ROF ABC Momo modulator XX XX XX
  kōwae mana ira rītaha aunoa MZ---M-Zkaiwhakaraupapa Te roangaru mahi:

15---1550nm

13---1310nm

10---1064nm

08---850nm

07---780nm

Momo muka:

S-- Te muka whatu aratau kotahi

P - muka polarization-te pupuri

Atanga muka whatu:

FAFC/APC

FP---FC/UPC

Atanga Kaiwhakamahi

Rōpū Mahi

Whakamaramatanga

Tautuhi Anō Whakauruhia te pekepeke ka kumea ki waho i muri i te 1 hēkona Tautuhi anō i te pūmana
Mana Pūtake hiko mo te kaiwhakahaere rītaha V- ka hono i te hiko kino o te hiko hiko
Ka hono a V+ i te hiko pai o te hiko hiko
Ka hono te tauranga waenga ki te hiko whenua
Polar1 PLRI: Whakauruhia, kumea ranei te pekepeke kahore he pekepeke: Aratau Null; me te pekepeke: aratau tihi
PLRQ: Whakauruhia, kumea ranei te pekepeke kahore he pekepeke: Aratau Null; me te pekepeke: aratau tihi
PLRP: Whakauruhia, kumea ranei te pekepeke kahore he pekepeke: aratau Q+; me te pekepeke: Q- aratau
LED I runga tonu Te mahi i raro i te ahua pumau
Whakaweto, whakaweto ranei ia 0.2s Te tukatuka raraunga me te rapu i te waahi whakahaere
Whakaweto, whakaweto ranei ia 1s He ngoikore rawa te mana whatu whakauru
Whakaweto, whakaweto ranei ia 3s He kaha rawa te mana whatu whakauru
PD2 Honoa ki te photodiode Ko te tauranga PD e hono ana i te Cathode o te photodiode
Ko te tauranga GND e hono ana i te Anode o te photodiode
Ngaohiko Piha I roto i, Ip: Ngaohiko pire mo I ringa Ip: Taha pai; I roto: Taha kino, whenua ranei
Qn, Qp: Ngaohiko piunga mo te ringaringa Q Qp: Te taha pai; Qn: He taha kino, he whenua ranei
Pn, Pp: Ngaohiko piunga mo te ringa P Pp: Te taha pai; Pn: taha kino, whenua ranei
UART Whakahaerehia te kaiwhakahaere ma te UART 3.3: 3.3V ngaohiko tohutoro
GND: Papa
RX: Whiwhi i te kaiwhakahaere
TX: Tukuna o te kaiwhakahaere

1 Ko te Polar e whakawhirinaki ana ki te tohu RF punaha. Mena kaore he tohu RF i roto i te punaha, me pai te polar. Ka nui ake te kaha o te tohu RF i tetahi taumata, ka huri te polar mai i te pai ki te kino. I tenei wa, ka huri te tohu Null me te Peak point tetahi ki tetahi. Ko te tohu Q+ me te tohu-Q ka huri ano tetahi ki tetahi. Ko te huringa polar ka taea e te kaiwhakamahi te huri i te polar

tika me te kore e huri i nga tohu mahi.

2Kia kotahi anake te kowhiringa i waenga i te whakamahi photodiode kaiwhakahaere me te whakamahi photodiode modulator ranei. E taunaki ana kia whakamahia te photodiode kaiwhakahaere mo nga whakamatautau Lab mo nga take e rua. Tuatahi, kua whakapumauhia e te photodiode kaiwhakahaere nga kounga. Tuarua, he maamaa ake te whakatika i te kaha o te rama whakauru.Mehemea kei te whakamahi i te photodiode o roto o te modulator, me mohio kei te tino rite te putanga o te photodiode ki te mana whakauru.
